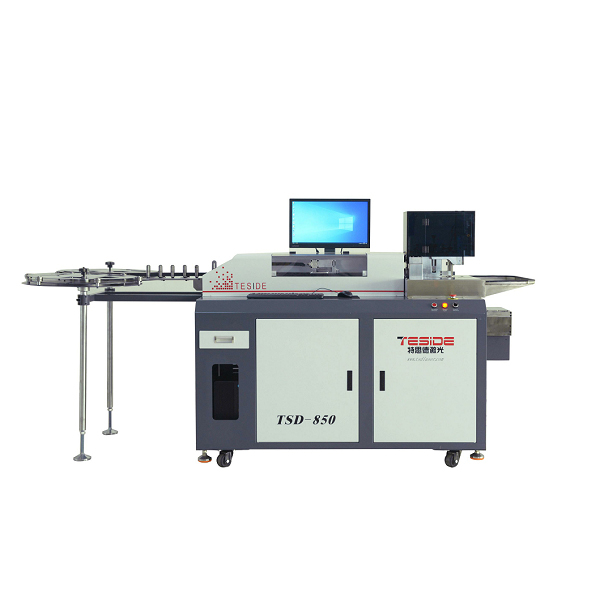

Auto Blade Bending Machine 2pt 3pt 4pt Cutting Rule Using Model TSD-850

Auto Blade Bending Machine 2pt 3pt 4pt Cutting Rule Using Model TSD-850

Technical Parameters:

Blade thickness(mm)	2pt, 3pt, 8pt
Bending Blade height(mm)	23.8mm-60mm
Bridge size	Width is adjustable by software, height is adjustable by tool
Max. bending angle	100°
Min. ARC radius of 90 degree	0.5mm
Front Min. bending size	2.5
Back Min. cutting size	1.0mm
Feeding precision	±0.03mm
Bending flatness	±0.2
Functions	Bending, cutting/twist off cutting, bridge and manual lipping
Cutting methods	Twist off cutting or Auto flat cutting
Optimal pattern format	Dxf format (Auto CAD)
Air supply	0.6mpa
Power supply	380V 50/60Hz(Standard)
Machine total power	1.3KW
Gross weight	550kgs
Overall dimension	2700×1050×1350mm(L×W×H)
H.S. Code	8462219000

Functions and usage:

1. Possess of operation such as bending, cutting, bridge and manual lipping functions.

2. Fuji servo motor system + ball-screw guide rail design, eradicate skidding anddislocated.

3. Unique imported mould tool design, easy to bend pattern, high precision of size, durable.

4. In order to guarantee precision and long-life span, transmission and control parts are imported.

5. Self-developed latest bending control system, easy to operate and upgrade available.

6. Fully English & Chinese interface, easy to learn how to operate, make bending work easy.
